EUROTEC / MATRIX FITNESS

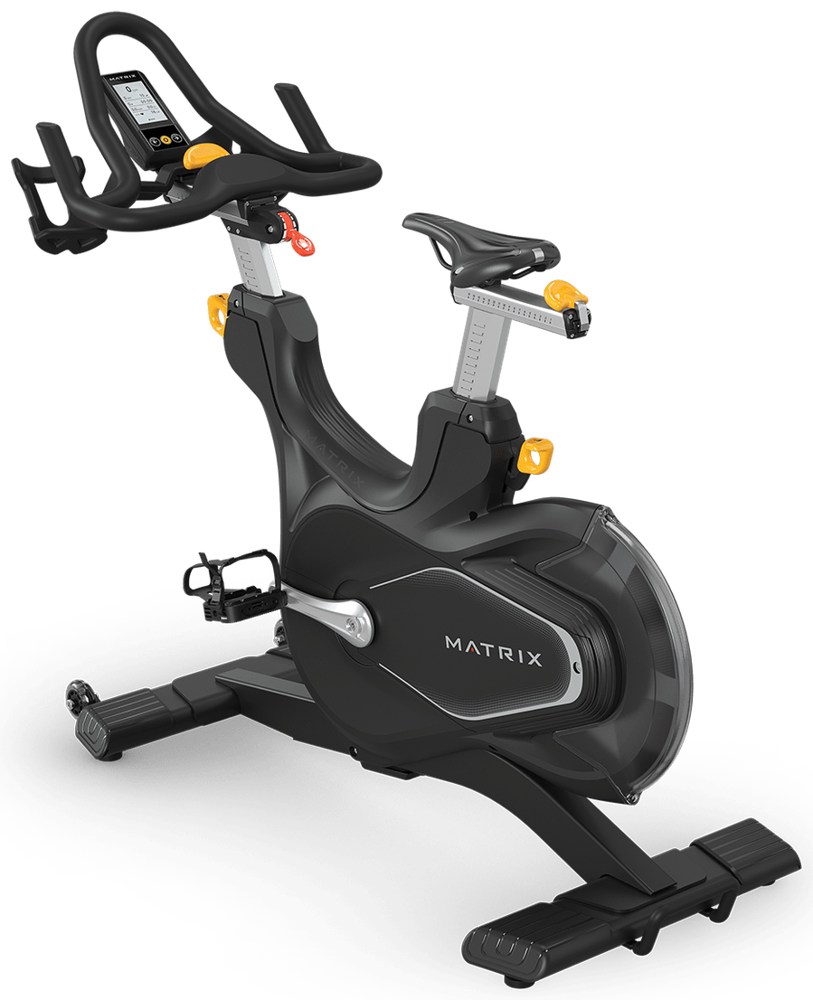

CXM Training Cycle
Specifications, console details, manuals and videos for CXM-02
Brand home
Product page and configuration
Specifications and product resources · CXM-02
| Drivetrain | Flexonic belt |
|---|---|
| Drivetrain Gear Ratio | 1:10 |
| Power Measurement (Watt) | Calculated |
| Console | Backlit LCD |
| Generator powered | Yes |
| Training Intensity Guide | No |
| ANT+/Bluetooth Enabled | Yes |
| Workout Tracking Compatible | No |
| Resistance System | Magnetic |
| Emergency Stop | Push |
| Flywheel | Rear, aluminum, evenly-weighted |
| Adjustment Type | Quick-touch levers |
| Posts & Sliders | Aluminum, pin-to-lock adjustment |
| Handlebar | Ergo-formed, multi-position, soft PVC |
| Handlebar Adjustments | Vertical & horizontal |
| Saddle | Ergonomically sculpted seat |
| Saddle Adjustments | Vertical & horizontal |
| Water Bottle Holder | Dual, integrated on handlebar |
| Frame Color | Matte black |
| Frame Material | Steel |
| Shrouds & Guards | Full frame |
| Frame Design | Off-set |
| Q Factor | 168 mm / 6.6” |
| Crank Type | Forged steel 170 mm / 6.7” |
| Pedal Type | Dual-sided SPD & toe cage |
| Frame Stabilizer Bars | Oversized, hidden bolts & fixings |
| Protection Plates | Yes |
| Leveling Feet | 4 |
| Transport Wheels | 2 |
| Overall Dimensions (L x W x H) | 122.4 x 56.4 x 102.8 cm / 48.2” x 22.2” x 40.5” |
| Product Weight | 56.5 kg / 124.5 lbs. |
| Max User Weight | 158.75 kg / 350 lbs. |
| Telemetric HR | Yes |
| WiFi Enabled | No |
| Asset Management Compatible | No |
