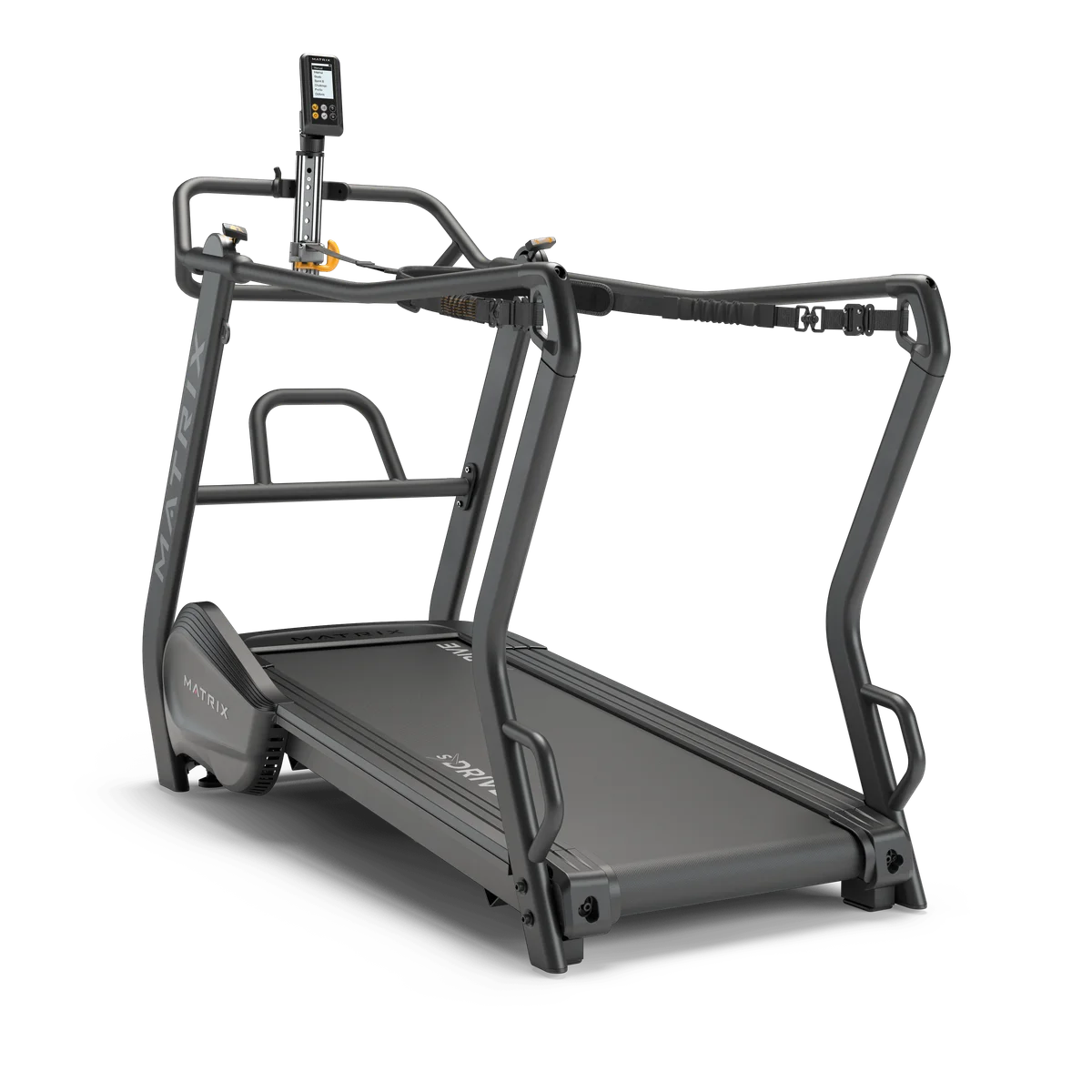

S-Drive Metrics

The S-Drive Metrics combines a user-driven treadmill, weighted sled, resistance parachute and harness system ideal for maximizing athletic speed and explosiveness. The S-Drive Metrics features an intuitive backlit LCD console that tracks speed, time, distance and heart rate while offering instant access to interval and Sprint 8 programming.

*Product availability may vary by market or by color.

S-Drive Metrics

153 x 51 cm

RUNNING SURFACE AREA

7-degree Fixed

INCLINE RANGE

Dual Magnetic Brakes

DRIVE SYSTEM

More Specifications /

ENHANCE RESISTANCE TRAINING

A parachute brake with multiple settings gives users the feel of real parachute resistance, perfect for resisted sprint drills without extra gear or access to a large track or field.

UPGRADE SLED-PUSHES

Our unique design includes a sturdy, built-in bar that simulates sled pushing and pulling without needing the space to use a traditional sled. Multiple sled brake settings help coaches and trainers develop precise progression programs to maximize results.

ADJUSTABLE HARNESS

Easily adjustable design offers a complete range of upper-body movement while helping coaches observe multiple sprint phases.

ELEVATE SPRINTING

The 7-degree incline and natural ground reaction force are ideal for building strength and explosiveness in sprint training without changing the athlete's natural gait.

Small and Large Group Training

When it comes to group training, S-Drive is easily incorporated between circuit stations to give members a full-body training experience that improves both cardiovascular and muscular fitness. Count on our comprehensive turnkey protocol to help your facility get up and running with a program that appeals to exercise enthusiasts of all ability levels.

Redefine Your Circuit

S-Drive isn’t just for elite athletes striving to reach their ultimate potential. It can also add an amazing new dimension to virtually any group circuit training program. From elite athletes to deconditioned users, S-Drive provides a full-body training experience that delivers results like nothing else.

Augment Agility

Athletes can perform forward, lateral or reverse movements to maximize neuromuscular development and enhance agility. Full-length handrails offer stability as users switch rapidly from one phase of athletic movement to the next.

Get More with Matrix

Contact one of our sales associates to bring our complete solutions to your facility today.

S-Drive Metrics

Group Training Brochure
Product Sell Sheet
Product Sell Sheet (large print)

Console

Asset Management Compatible

N/A

Fitness Tests

Sub maximal heart rate

Programs

Manual, Intervals, Sprint 8

RFID Enabled

N/A

Telemetric HR

Yes

Training Intensity Guide

WiFi Enabled

Workout Tracking Compatible

ANT+ Enabled

N/A

Bluetooth Enabled

N/A

Display Feedback

Time, Distance, Heart Rate (with heart rate strap), Calories

Display Screen

Extra-large backlit LCD display

Drive System

Dual magnetic maintenance free brakes

Features

Power Measurement (Watt)

N/A

Belt Type

Forbo, commercial grade

Resistance Levels

11 parachute, 8 sled

Incline Range

7° fixed

Resistance System

Magnetic

Speed Range

User defined

Running Area

152 x 51 cm / 60” x 22”

Step-on Height

17.8 cm / 7”

Deck Type

Reversible, 2.5 cm / 1”

User Harness

Adjustable, connection free harness

Tech Specs

Max User Weight

182 kg / 400 lbs.

Product Weight

122.5 kg / 270 lbs.

Shipping Weight

145.2 kg / 320 lbs.

Power Requirements

Self powered / DC plug in (charging only)

Sled Brake Maximum Resistance

122.5 kg / 270-lb. sled on natural turf

Overall Dimensions

195 x 88.3 x 150 cm / 76.8” x 34.8” x 59” (L x W x H)
