Color-Coded Placard

Large, color-coded placard demonstrates start and finish positions while highlighting active muscle groups. Storage space keeps personal device, water bottles and towels in reach while reducing clutter.

Guide Rods

The guide rods can be removed without any tools at all for quick, easy maintenance. A durable metal shroud withstands tough environments and can be removed with only two bolts to streamline service.

Small Footprint

Go Series features a small footprint and back-to-back design, improving traffic flow and making it easy to configure your space. Each single-station unit has a low starting weight and minimal to no adjustments, so users can get started right away.

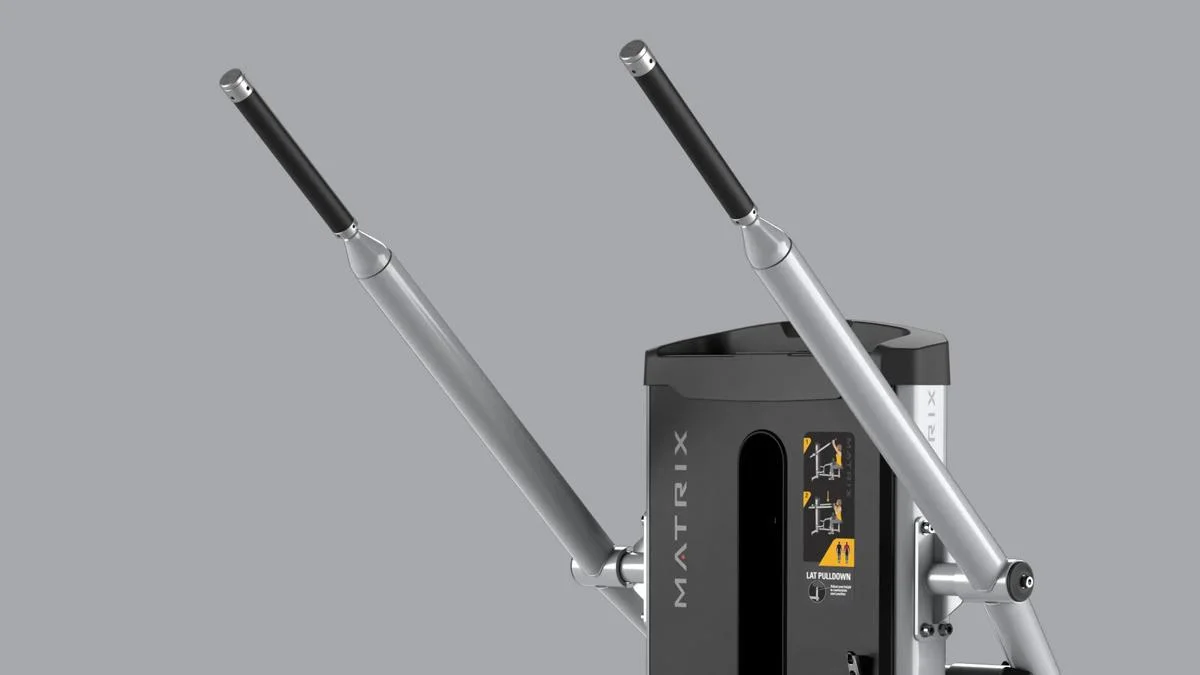

Long Oversized Vertical Grips

Provides a large area for users to grip when performing the exercise based on comfort.

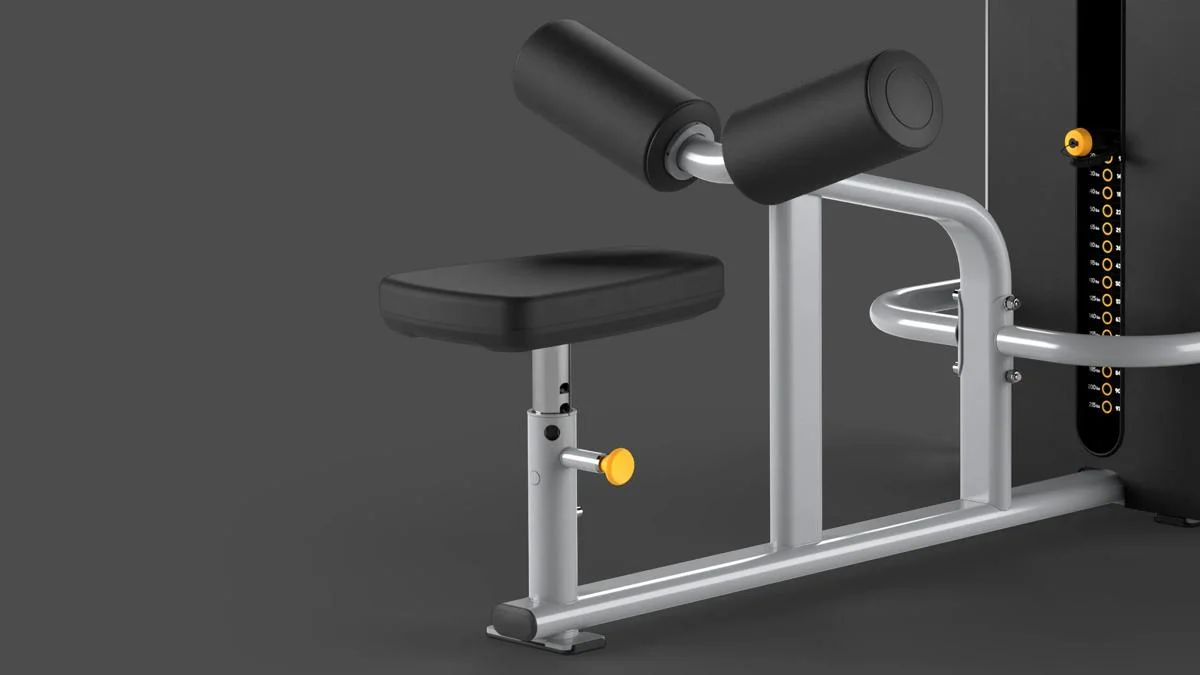

Ratching Seat Adjustment

Allows users to adjust the seat up or down based on height and desired range of motion. Feature allows upward ratchet without having to pull the adjustment pin.

Get More with Matrix

Contact one of our sales associates to bring our complete solutions to your facility today.

Go Series Lat Pulldown

Strength Brochure
Product Sell Sheet
Product Sell Sheet (large print)

Adjustments

Color-coded Pivots & Points of Adjustment

Yes

User Adjustment Range

6 seat starting positions

Frame & Cables

Frame Finish

Proprietary two-coat powder process

Available Frame Color

Iced Silver, Matte Black, Graphite Grey, Gloss Black, Polarized Titanium, Lace White

Cable Transmission

Internally lubricated cables and fittings

Machine Anchoring Locations

Yes

Tech Specs

Overall Dimensions (L x W x H)

162 x 91 x 171 cm / 63.8” x 35.8” x 67.3”

Max ”In-Use” Dimensions (L x W x H)

174 x 91 x 171 cm / 68.5” x 35.8” x 67.3”

Product Weight

210 kg / 463 lbs.

Max User Weight

159 kg / 350 lbs.

User Amenities

Front Placards

Muscle call outs, start and finish exercise illustrations, adjustment points

Placard Color Ccoding

Yellow (upper body)

Personal Storage

Bottle holder and storage area

Weight Stack

Total Stack Weight

72 kg / 160 lbs.

Weight Plate Increments

4.5 kg / 10 lbs.

Optional Incremental Weight

2.3 kg / 5 lbs.

Consistent Stack Height

Yes, 137 cm / 54”

Weight Stack Guarding

Full front and rear metal shrouds

Technical specifications
