Know the equipment

VISION R60 recumbent bike

Name: VISION R60 recumbent bike
SKU: VISION-R60-LED

SKU VISION-R60-LED

Vision R60 recumbent bike for cardio training, with a seat, backrest and easy access.

To select a quantity and add it to the project →Details & Quote →Availability, specification and final configuration will be confirmed in the quotation.

Details and specifications

Main features:

Display:: LED console with a dot-matrix workout profile and alphanumeric training data.
Connectivity:: Bluetooth for heart rate and workout data; the LED console does not include WiFi.
Training programs:: training with heart rate targets, pre-set training, and more.
Digital Aid Compatibility:: Compatible with external fitness apps via Bluetooth.
Languages:: Support for a variety of languages including English, German, French, and more.
Resistance system:: a resistance system with 25 levels.
Weight:: 74.5 kg.
Dimensions:: length 161.9 cm, width 72.5 cm, height 138.3 cm. These dimensions match both the R60-03 brochure and the current R60 / R600E manufacturer page; the supplied generation and configuration will be confirmed in the quotation.
Comfort:: seat adjustable to 28 different positions.
Extras:: water bottle holder and shelf for reading.

Downloadable catalogs and specifications

R600E brochure — Entertainment touchscreen ↗

This brochure describes the R600E with a 16-inch Entertainment touchscreen. The supplied R60 LED generation and specifications require supplier confirmation.

How it fits into your space

Cardio

Which activities are in demand, and how many stations need to operate at the same time during peak hours?

Additional equipment worth knowing

MATRIX-U-LS-PLED

U-LS-PLED | Lifestyle series upright exercise bike with premium LED console

Your training process will become an exciting experience with the Lifestyle series upright bike, equipped with a premium LED console. The large screen

For details and selection →

MATRIX-U-LS-TOUCH

U-LS-TOUCH | Lifestyle series upright exercise bike with touch console

Meet the upright bikes from the Lifestyle series, perfect for facilities with limited space and low volume of use. With a comfortable Ergo Form seat,

For details and selection →

MATRIX-R-LS-GTLED

R-LS-GTLED | Inclined exercise bike from the Lifestyle series with an LED console for group training

Advanced and inspiring group training is now more accessible than ever with the Lifestyle Series recumbent bike. The bike is designed for use in facil

For details and selection →

MATRIX-R-LS-LED

R-LS-LED | Lifestyle series recumbent exercise bike with LED console

Let your exercisers enjoy a comfortable and effective cardio workout with the Lifestyle series recumbent bike. The bike is adapted for use in faciliti

For details and selection →

How does it fit your complex?

We will connect the area, the equipment and the way you want to train.

Planning together →

Specifications and product resources · R60 / R600E

Frame Type	Heavy-gauge welded steel, recumbent
Pedal Type	Self-balancing with adjustable straps
Seat Type	Pure Comfort seat
Seat Adjustment	28 positions
Resistance System	2-stage generator
Handlebar Design	Console and seat-mounted with contact heart rate grips
Extras	Water bottle holder, reading rack
Assembled Dimensions	161.9 x 72.5 x 138.3 cm / 63.7” x 28.5” x 54.4”
Assembled Weight	74.5 kg / 164 lbs.
Max User Weight	182 kg / 400 lbs.
Power Requirements	By power adapter, output: 12 V DC, 5 A (may vary by region)

Console specifications

Compare console options. The selected order configuration determines the supplied console.

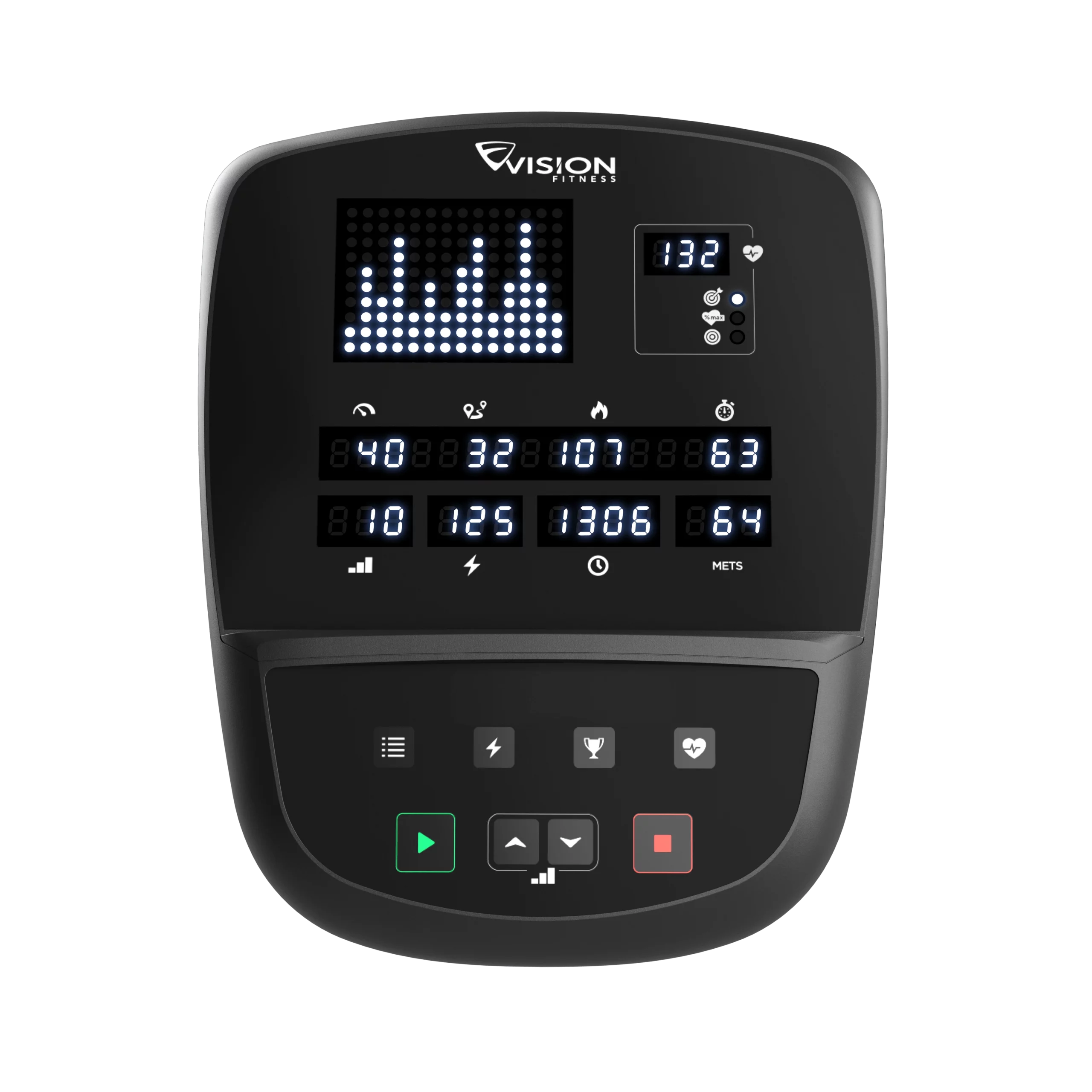

LED Console

Display	10 x 14 white dot-matrix LED profile display, alphanumeric LEDs
Workout Feedback	Distance, speed, heart rate, % max heart rate, Watts, METs, RPM, calories, time, resistance
Programs	Manual, interval training, fat burn, HR weight loss, HR interval, constant watts, interval watts, hill watts, time goal, distance goal, calorie goal, random
Programs	Manual, Sprint 8, target heart rate, interval training, fat burn, HR weight loss, HR interval, HR hill, trail 2K, trail 5K, trail 8K, glute burn, summit hike, mountain trek, stair climb, fitness test, random, custom
Heart Rate	Contact, telemetric, Bluetooth
WiFi	No
Bluetooth	Yes: Heart rate, FTMS transmits speed and other data to training apps
CSAFE	No
Power consumption when turned off	≤ 0.3 W
Power consumption in standby mode	≤ 0.5 W

Entertainment Console

Display	41 cm / 16” class capacitive touchscreen LCD
Programs	Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, time goal, distance goal, calorie goal, fitness test, custom
Programs	Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, glutes, time goal, distance goal, calorie goal, fitness test, custom
Heart Rate	Contact, telemetric, Bluetooth
Languages	English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
Analog TV	Optional: NTSC, PAL, SECAM
Digital TV	Optional: ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
Pro:Idiom Compatibility	Optional (via Coax)
WiFi	Yes
USB Port	Yes: device charging, device media, software updates
HDMI In Port	Yes: screen cast of smart devices that support HDMI out to console
Bluetooth	Yes: heart rate, headphones, FTMS transmits speed and other data to training apps
CSAFE	Yes
Power consumption when turned off	≤ 0.3 W
Power consumption in standby mode	≤ 0.5 W

Manufacturer specifications for this model. Optional features, console, power supply and weight stack depend on the ordered configuration.Full technical guide at Eurotec
