VISION S60 Suspension Elliptical

Name: VISION S60 Suspension Elliptical
SKU: VISION-S60-LED

SKU VISION-S60-LED

Discover the S60 from Vision Fitness, the advanced elliptical machine that provides a smooth and effective training experience while maintaining maximum comfort.

To select a quantity and add it to the project →Details & Quote →Availability, specification and final configuration will be confirmed in the quotation.

Details and specifications

Discover the S60 from Vision Fitness, the advanced elliptical machine that provides a smooth and effective training experience while maintaining maximum comfort. With an advanced maintenance-free air suspension design, the S60 provides a natural training experience that protects users of all fitness levels. The fine ergonomic details and high accessibility allow anyone to start training comfortably and safely.

Features:

Frame type:: Elliptical with suspension
Variable stride length:: 53 cm
Rise height:: 21.6 cm
Resistance system:: 2 stages, self-propelled
Resistance range:: 1-20
Pedal type:: Enlarged with rubber coating
Pedal spacing:: 5.1 cm
Handle type:: Adjustable dynamic handles with heart rate sensors
Extras:: Water bottle holder, shelf for reading

Console:

Display:: White LED console with a 10 x 14 dot-matrix workout profile and alphanumeric data
Training feedback:: distance, speed, heart rate, maximum heart rate, watts, METs, calories, time and resistance
Programs:: manual, break, burn fat, mountains, watts, distance, time, calories, well, heart distance

Technical specifications:

Assembly dimensions:: length 209.3 cm, width 87.9 cm, height 172.7 cm
Machine weight:: 160 kg
Maximum user weight:: 182 kg
Electrical requirements:: self-contained, does not require a connection to electricity

The S60 elliptical is the perfect choice for

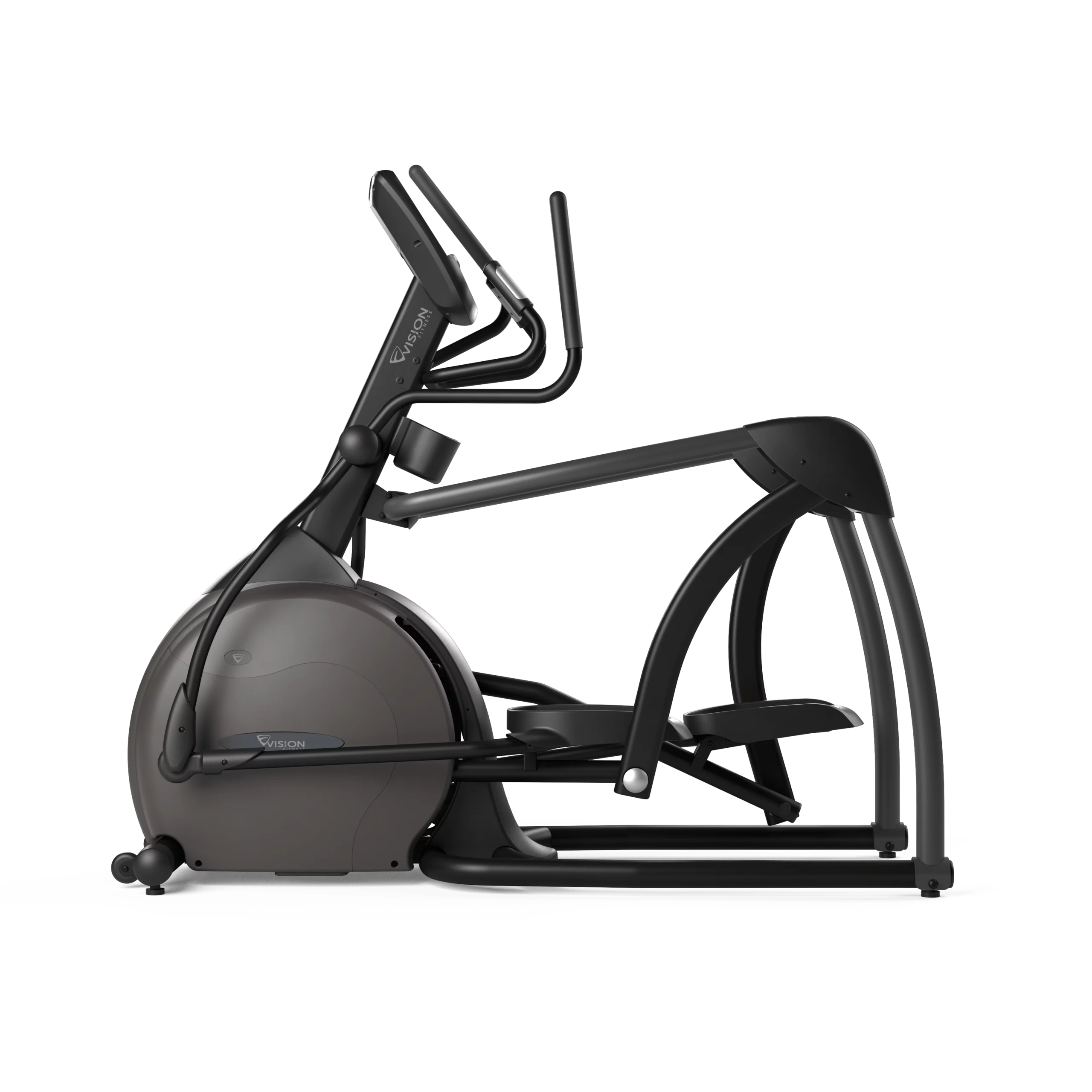

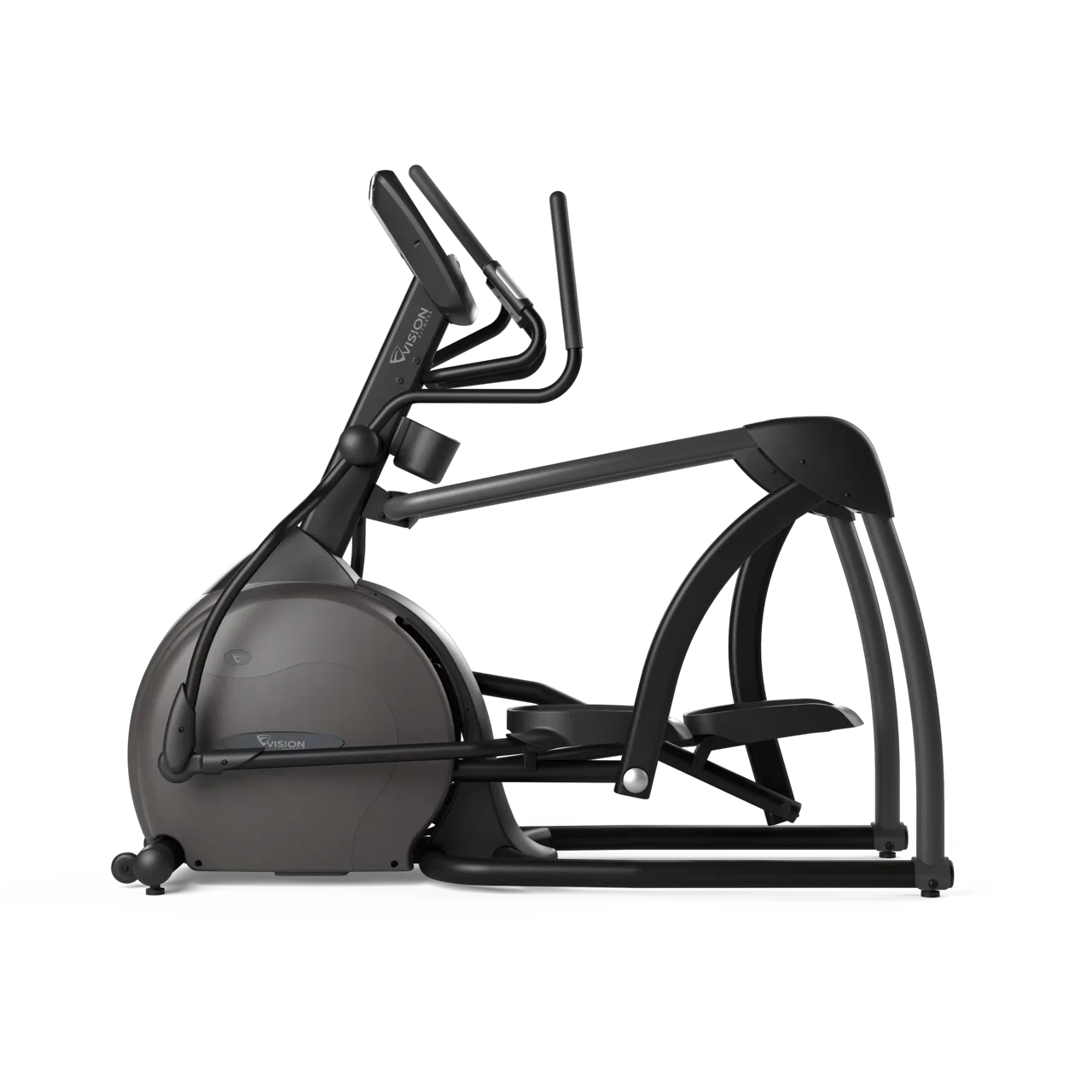

VISION S60 Suspension Elliptical — picture 1

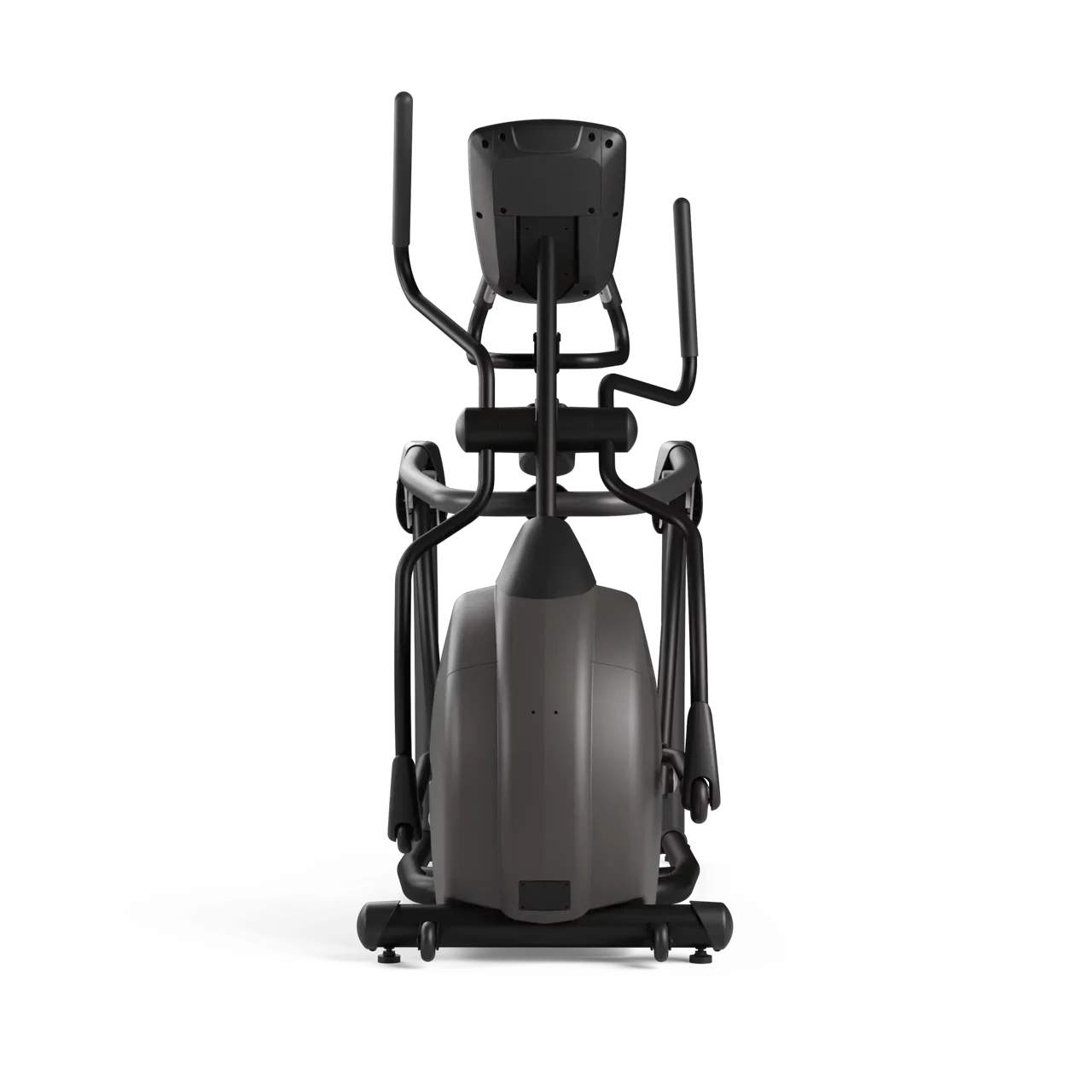

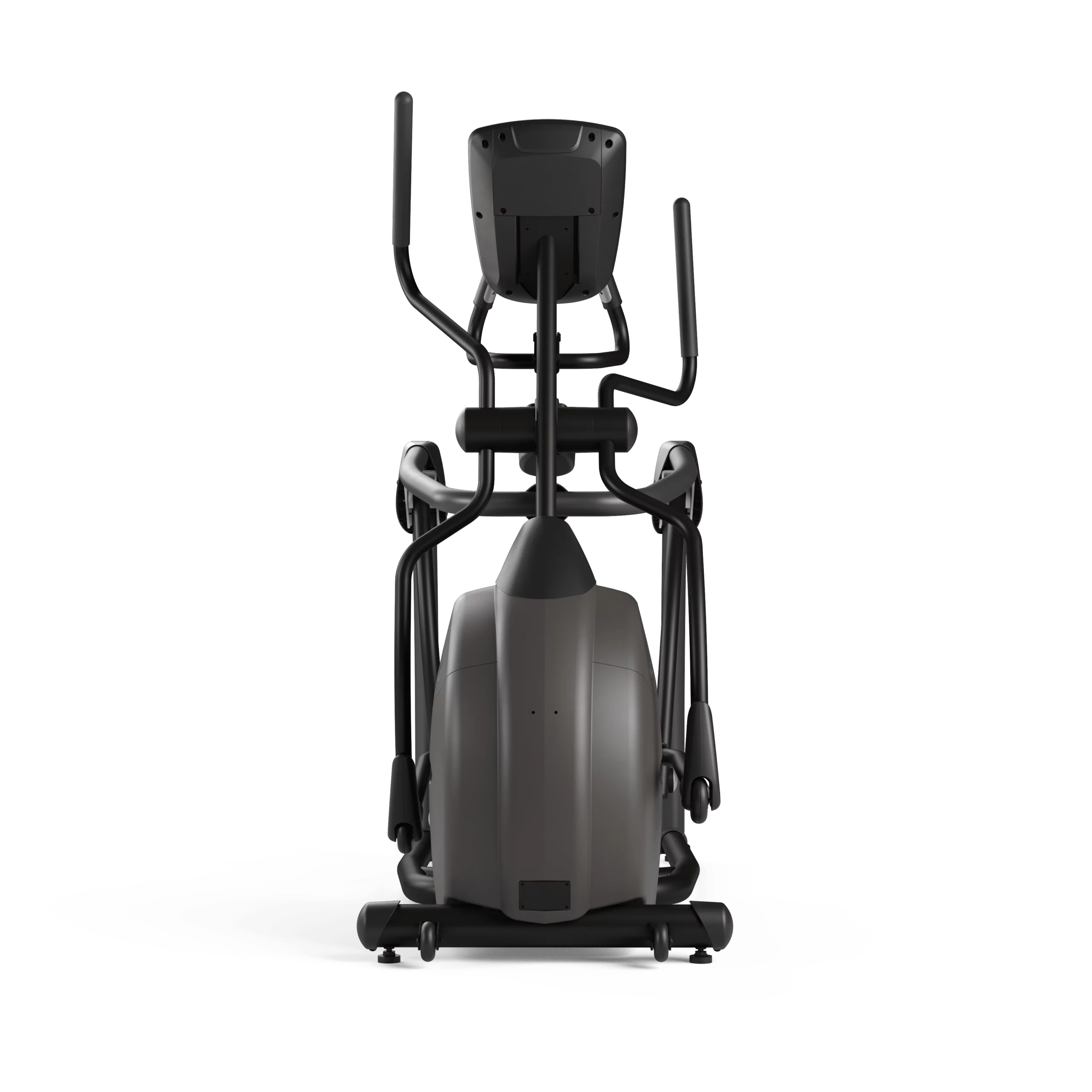

VISION S60 Suspension Elliptical — picture 2

VISION S60 Suspension Elliptical — picture 3

VISION S60 Suspension Elliptical — picture 4

Downloadable catalogs and specifications

Product catalog ↗

How it fits into your space

Cardio

Which activities are in demand, and how many stations need to operate at the same time during peak hours?

Additional equipment worth knowing

MATRIX-U-LS-PLED

U-LS-PLED | Lifestyle series upright exercise bike with premium LED console

Your training process will become an exciting experience with the Lifestyle series upright bike, equipped with a premium LED console. The large screen

For details and selection →

MATRIX-U-LS-TOUCH

U-LS-TOUCH | Lifestyle series upright exercise bike with touch console

Meet the upright bikes from the Lifestyle series, perfect for facilities with limited space and low volume of use. With a comfortable Ergo Form seat,

For details and selection →

MATRIX-R-LS-GTLED

R-LS-GTLED | Inclined exercise bike from the Lifestyle series with an LED console for group training

Advanced and inspiring group training is now more accessible than ever with the Lifestyle Series recumbent bike. The bike is designed for use in facil

For details and selection →

MATRIX-R-LS-LED

R-LS-LED | Lifestyle series recumbent exercise bike with LED console

Let your exercisers enjoy a comfortable and effective cardio workout with the Lifestyle series recumbent bike. The bike is adapted for use in faciliti

For details and selection →

How does it fit your complex?

We will connect the area, the equipment and the way you want to train.

Planning together →

Specifications and product resources · S60 / S600E

Frame Type	Suspension Elliptical Trainer
Stride Length	53.4 cm / 21”
Step-on Height	23 cm / 9”
Power Incline	No
Resistance System	2-stage generator
Resistance Range	1–25
Pedal Type	Oversized with rubber inserts
Pedal Spacing	5.1 cm / 2”
Handlebar Design	Dual action and stationary with heart rate grips
Extras	Water bottle holder, reading rack
Assembled Dimensions	186 x 75 x 164 cm / 74” x 29.5” x 64.5”
Assembled Weight	146.5 kg / 323 lbs.
Max User Weight	182 kg / 400 lbs.
Power Requirements	By power adapter, output: 12 V DC, 5 A (may vary by region)

Console specifications

Compare console options. The selected order configuration determines the supplied console.

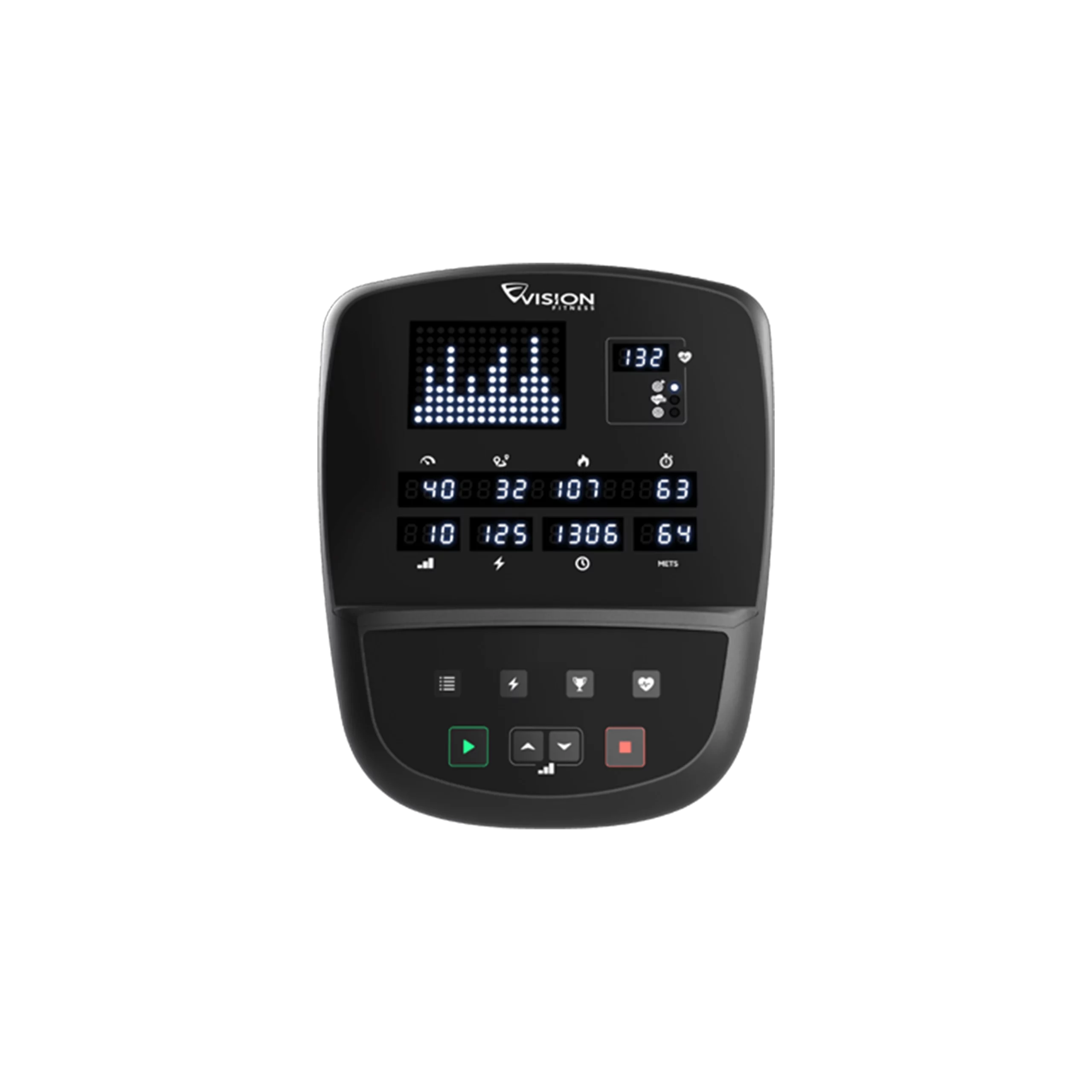

LED Console

Display	10 x 14 white dot-matrix LED profile display, alphanumeric LEDs
Workout Feedback	Distance, speed, heart rate, % max heart rate, Watts, METs, RPM, calories, time, resistance
Programs	Manual, interval training, fat burn, HR weight loss, HR interval, constant watts, interval watts, hill watts, time goal, distance goal, calorie goal, random
Programs	Manual, Sprint 8, target heart rate, interval training, fat burn, HR weight loss, HR interval, HR hill, trail 2K, trail 5K, trail 8K, glute burn, summit hike, mountain trek, stair climb, fitness test, random, custom
Heart Rate	Contact, telemetric, Bluetooth
WiFi	No
Bluetooth	Yes: Heart rate, FTMS transmits speed and other data to training apps
CSAFE	No
Power consumption when turned off	≤ 0.3 W
Power consumption in standby mode	≤ 0.5 W

Entertainment Console

Display	41 cm / 16” class capacitive touchscreen LCD
Programs	Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, time goal, distance goal, calorie goal, fitness test, custom
Programs	Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, glutes, time goal, distance goal, calorie goal, fitness test, custom
Heart Rate	Contact, telemetric, Bluetooth
Languages	English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
Analog TV	Optional: NTSC, PAL, SECAM
Digital TV	Optional: ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
Pro:Idiom Compatibility	Optional (via Coax)
WiFi	Yes
USB Port	Yes: device charging, device media, software updates
HDMI In Port	Yes: screen cast of smart devices that support HDMI out to console
Bluetooth	Yes: heart rate, headphones, FTMS transmits speed and other data to training apps
CSAFE	Yes
Power consumption when turned off	≤ 0.3 W
Power consumption in standby mode	≤ 0.5 W

Manufacturer specifications for this model. Optional features, console, power supply and weight stack depend on the ordered configuration.Full technical guide at Eurotec
