Know the equipment

VISION U600E upright bike

Name: VISION U600E upright bike
SKU: VISION-U600E-TOUCH

SKU VISION-U600E-TOUCH

Upright exercise bike model U600E by Vision Fitness guarantees a dynamic and powerful riding experience, with a variety of entertainment and training options.

To select a quantity and add it to the project →Details & Quote →Availability, specification and final configuration will be confirmed in the quotation.

Details and specifications

Upright exercise bike model U600E by Vision Fitness guarantees a dynamic and powerful riding experience, with a variety of entertainment and training options. The system offers multi-position handles for maximum comfort, an adjustable chair for a personal fit and an advanced console that provides access to popular apps, unique training programs and streaming entertainment options.

List of features:

Console:: 16-inch Entertainment capacitive touchscreen with a color LCD
Training programs:: manual modes, Sprint 8, Virtual Active, and more
Fitness app compatibility:: via Bluetooth and ANT+
Digital and analog TV compatibility:: optional, via coaxial cable
HDMI connection:: Yes, for streaming content from your smartphone or other smart devices
Resistance system:: 25-step generator
Seat adjustment:: 15 up/down positions
Resistance range:: 1-25
Seat type:: comfort seat with padding
Additional accessories:: water bottle stand, reading shelf
Maximum user weight:: 182 kg
Assembled dimensions:: length 104 cm, width 65 cm, height 144 cm
Device weight:: 57 kg
Power requirements:: power adapter with 12V DC, 5A output

Downloadable catalogs and specifications

Product catalog ↗

How it fits into your space

Cardio

Which activities are in demand, and how many stations need to operate at the same time during peak hours?

Additional equipment worth knowing

MATRIX-U-LS-PLED

U-LS-PLED | Lifestyle series upright exercise bike with premium LED console

Your training process will become an exciting experience with the Lifestyle series upright bike, equipped with a premium LED console. The large screen

For details and selection →

MATRIX-U-LS-TOUCH

U-LS-TOUCH | Lifestyle series upright exercise bike with touch console

Meet the upright bikes from the Lifestyle series, perfect for facilities with limited space and low volume of use. With a comfortable Ergo Form seat,

For details and selection →

MATRIX-R-LS-GTLED

R-LS-GTLED | Inclined exercise bike from the Lifestyle series with an LED console for group training

Advanced and inspiring group training is now more accessible than ever with the Lifestyle Series recumbent bike. The bike is designed for use in facil

For details and selection →

MATRIX-R-LS-LED

R-LS-LED | Lifestyle series recumbent exercise bike with LED console

Let your exercisers enjoy a comfortable and effective cardio workout with the Lifestyle series recumbent bike. The bike is adapted for use in faciliti

For details and selection →

How does it fit your complex?

We will connect the area, the equipment and the way you want to train.

Planning together →

Specifications and product resources · U60 / U600E

Frame Type	Heavy-gauge welded steel, upright
Pedal Type	Self-balancing with adjustable straps
Seat Type	Pure Comfort seat
Seat Adjustment	15 positions, up/down
Resistance System	2-stage generator
Resistance Range	1–25
Handlebar Design	Multi-position handlebars with armrests and contact heart rate grips
Extras	Water bottle holder, reading rack
Assembled Dimensions	104 x 65 x 144 cm / 41” x 25.6” x 56.7”
Assembled Weight	57 kg / 125 lbs.
Max User Weight	182 kg / 400 lbs.
Power Requirements	By power adapter, output: 12 V DC, 5 A (may vary by region)

Console specifications

Compare console options. The selected order configuration determines the supplied console.

LED Console

Display	10 x 14 white dot-matrix LED profile display, alphanumeric LEDs
Workout Feedback	Distance, speed, heart rate, % max heart rate, Watts, METs, RPM, calories, time, resistance
Programs	Manual, interval training, fat burn, HR weight loss, HR interval, constant watts, interval watts, hill watts, time goal, distance goal, calorie goal, random
Programs	Manual, Sprint 8, target heart rate, interval training, fat burn, HR weight loss, HR interval, HR hill, trail 2K, trail 5K, trail 8K, glute burn, summit hike, mountain trek, stair climb, fitness test, random, custom
Heart Rate	Contact, telemetric, Bluetooth
WiFi	No
Bluetooth	Yes: Heart rate, FTMS transmits speed and other data to training apps
CSAFE	No
Power consumption when turned off	≤ 0.3 W
Power consumption in standby mode	≤ 0.5 W

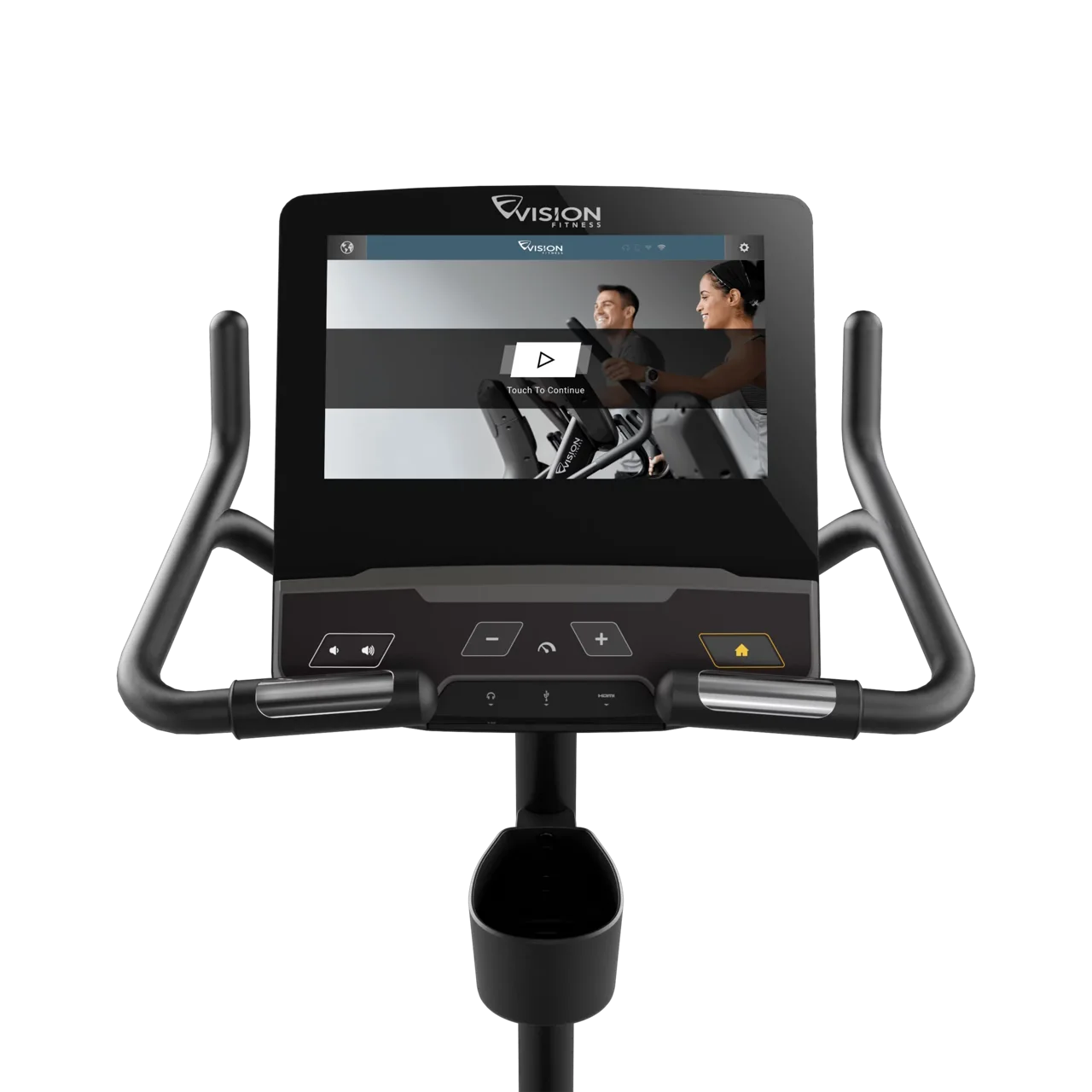

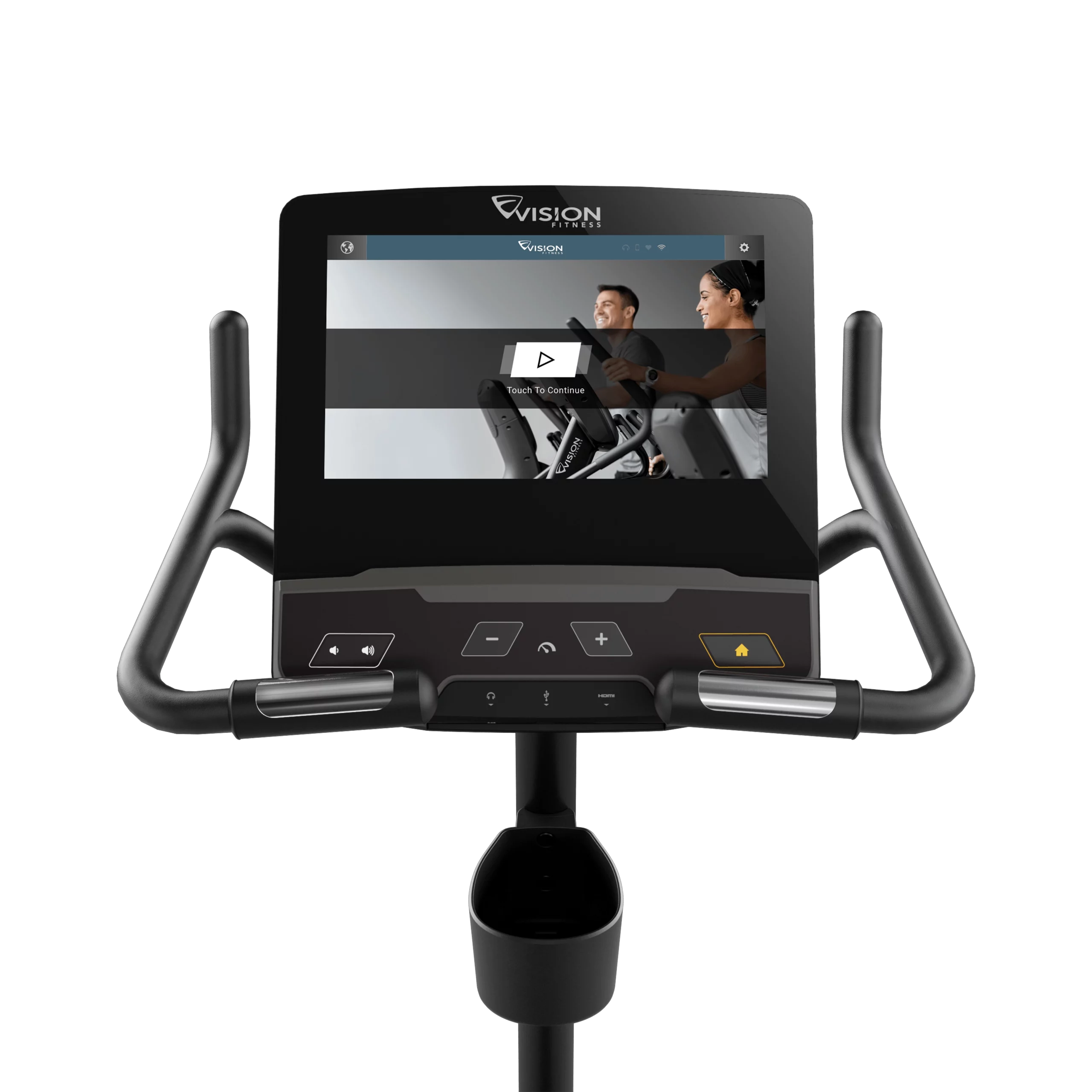

Entertainment Console

Display	41 cm / 16” class capacitive touchscreen LCD
Programs	Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, time goal, distance goal, calorie goal, fitness test, custom
Programs	Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, glutes, time goal, distance goal, calorie goal, fitness test, custom
Heart Rate	Contact, telemetric, Bluetooth
Languages	English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
Analog TV	Optional: NTSC, PAL, SECAM
Digital TV	Optional: ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
Pro:Idiom Compatibility	Optional (via Coax)
WiFi	Yes
USB Port	Yes: device charging, device media, software updates
HDMI In Port	Yes: screen cast of smart devices that support HDMI out to console
Bluetooth	Yes: heart rate, headphones, FTMS transmits speed and other data to training apps
CSAFE	Yes
Power consumption when turned off	≤ 0.3 W
Power consumption in standby mode	≤ 0.5 W

Manufacturer specifications for this model. Optional features, console, power supply and weight stack depend on the ordered configuration.Full technical guide at Eurotec
