Elliptical E50

Name: Elliptical E50
Brand: MATRIX_RETAIL

E50

MATRIX collection for personal and home training. Choose a screen to add to the project. Local availability and configuration to be approved in the proposal.

Choose a model and quantity →

Final specifications, availability and price are confirmed in your quotation.

Product specifications

degrees of resistance: 30 levels, electronically adjustable
Dimensions: 148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
The weight of the device: 133 kg / 293 lbs.
Maximum training weight: 147 kg / 325 lbs.

Models & configurations

Configuration	SKU	Unit
XUR screen	MATRIX-E50XUR	unit
XIR screen	MATRIX-E50XIR	unit
XER screen	MATRIX-E50XER	unit
XR screen	MATRIX-E50XR	unit

Add to your equipment list →

Elliptical E50 — image 2 — Photographing the model · Configuration according to choice

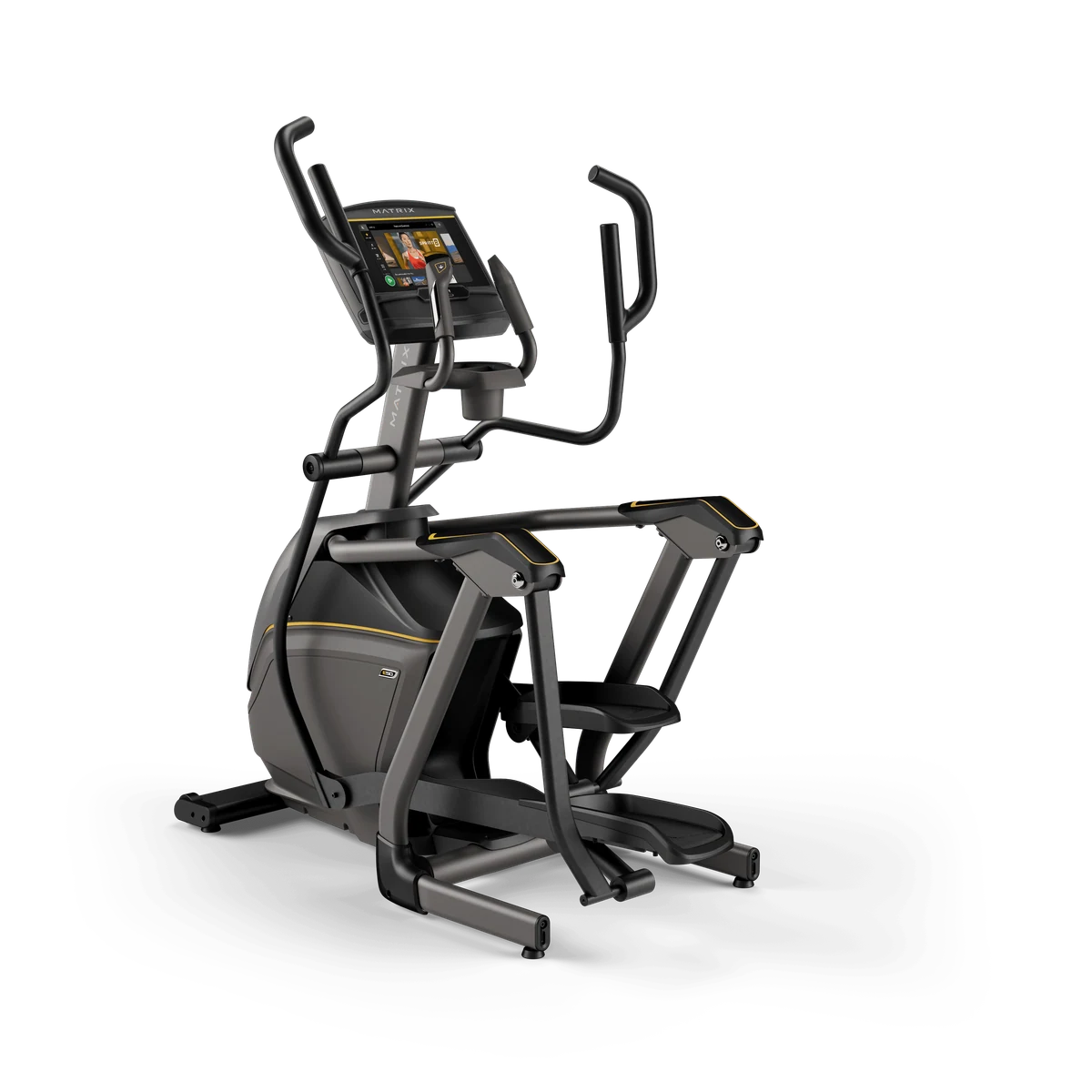

Elliptical E50 — image 3 — Photographing the model · Configuration according to choice

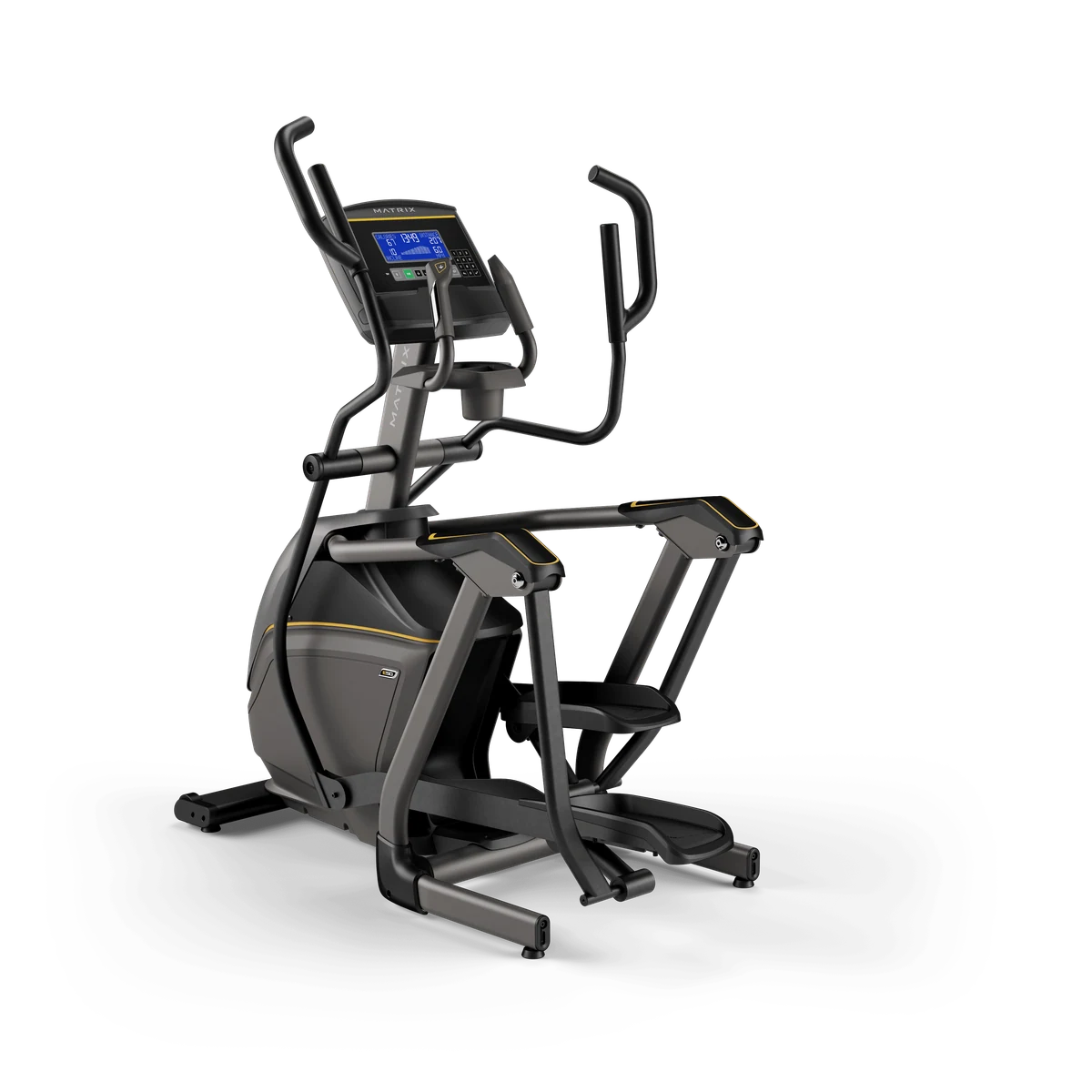

Elliptical E50 — image 4 — Photographing the model · Configuration according to choice

How it fits into your space

Cardio

Which activities are in demand, and how many stations need to operate at the same time during peak hours?

How does this product fit into your space?

Compare products, combine brands and get advice on planning your space.

Let’s plan together →

Specifications and product resources · E50

Frame Type	Suspension Elliptical Trainer
Stride Length	51 cm / 20”
Step-on Height	23 cm / 9.1”
Resistance System	Exact Force induction brake
Resistance Range	30 levels, electronically adjustable
Pedal Type	Oversized with rubber inserts
Pedal Spacing	6.35 cm / 2.5”
Handlebar Design	Multi-position dual action, stationary with resistance toggles and heart rate grips
Extras	Water bottle holder, accessory tray
Assembled Dimensions	148 x 84 x 173 cm / 58” x 33” x 68.1” (Active footprint: 175 x 84 x 177 cm / 68.9” x 33” x 69.7”)
Assembled Weight	133 kg / 293 lbs.
Max User Weight	147 kg / 325 lbs.
Power Requirements	120 V AC power, 15 A circuit (voltage may vary outside the USA)

Product video · E50 Elliptical Review

Console specifications

Compare console options. The selected order configuration determines the supplied console.

XUR

Display Type	22” class HD capacitive touchscreen (55.8 cm)
WiFi Enabled	ViewFit Connectivity, entertainment apps, software updates
Bluetooth Enabled	Connect to popular training and coaching apps, connect wireless headphones, connect wireless heart rate monitor
HDMI Port	Connect streaming media devices, phones or tablets
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
Speakers	5 Watt
Console Apps	My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
Passport Ready	No
ViewFit Connectivity	Yes
Heart Rate	Bluetooth wireless heart rate, Bluetooth heart rate strap included
Console Extras	Integrated reading rack, energy saver mode, audio in/out
Workouts	13 total — manual, rolling hills, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, Constant Watts Time Goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, Landmarks, time goal, floors goal, calorie goal, target heart rate, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, intervals, constant watts, Glutes, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, total steps, total floors, SPM, average SPM, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts METS, incline, previous incline, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, incline, previous incline, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Assembled Weight	10.5 kg / 23 lbs.

Touchscreen Console Guide · PDF

Download manual

XIR

Display Type	16” class HD capacitive touchscreen (40 cm)
WiFi Enabled	ViewFit Connectivity, entertainment apps, software updates
Bluetooth Enabled	Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
HDMI Port	Connect streaming media devices, phones or tablets
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Rear: Not active
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps. Rear: Provides power to USB powered devices up to 1 amp.
Speakers	5 Watt
Console Apps	My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Kindle Reader, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
Passport Ready	No
ViewFit Connectivity	Yes
Heart Rate	Bluetooth wireless heart rate, Bluetooth heart rate strap included
Console Extras	Integrated reading rack, energy saver mode, audio in/out
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, Constant Watts Time Goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, Landmarks, time goal, floors goal, calorie goal, target heart rate, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, intervals, constant watts, Glutes, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, fat burn, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	13 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), target heart rate (incline), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, total steps, total floors, SPM, average SPM, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH / KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts METS, incline, previous incline, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, incline, previous incline, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Assembled Weight	5.5 kg / 12 lbs.

Touchscreen Console Guide · PDF

Download manual

XER

Display Type	10” class capacitive touchscreen (26 cm)
WiFi Enabled	ViewFit Connectivity, entertainment apps, software updates
Bluetooth Enabled	Connect to popular training and coaching apps, Bluetooth headphones, Bluetooth heart rate monitor
HDMI Port	No
USB Port	Front: Use to access media from compatible devices and to install software updates.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates.
USB Port	Front: Use to access media from compatible devices and to install software updates.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
USB Port	Front: Use to access media from compatible devices and to install software updates. Charges most devices up to 2.4 amps.
Speakers	3 Watt
Console Apps	My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)
Passport Ready	No
ViewFit Connectivity	Yes
Heart Rate	Bluetooth wireless heart rate, Bluetooth heart rate strap included
Console Extras	Integrated reading rack, energy saver mode, audio in/out
Workouts	12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, rolling hills, intervals, time goal, distance goal, calorie goal, target heart rate (speed), Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, fat burn, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, fat burn, intervals, Landmarks, time goal, floors goal, calorie goal, target heart rate, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, fat burn, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, constant watts, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Workouts	12 total — manual, intervals, fat burn, time goal, distance goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, custom
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, incline, previous incline, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, incline, previous incline, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), previous speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, elevation, incline, previous incline
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, total steps, total floors, SPM, average SPM, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, previous resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, resistance, last resistance
Display Feedback	Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, watts, METS, resistance, previous resistance
Assembled Weight	4.5 kg / 10 lbs.

Touchscreen Console Guide · PDF

Download manual

Display	8.5” extra-wide blue LCD (22 cm)
WiFi Enabled	No
Bluetooth Enabled	Connect to popular training and coaching apps, connect wireless heart rate monitor
HDMI Port	No
USB Port	Internal USB port for software updates
Speakers	No
Console Apps	No
Passport Ready	No
ViewFit Connectivity	No
Heart Rate	Bluetooth wireless heart rate
Console Extras	Integrated reading rack, energy saver mode
Workouts	5 total — manual, intervals, constant watts, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, fat burn, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, constant watts, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, fat burn, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, constant watts, target heart rate, Sprint 8
Workouts	5 total — manual, fat burn, intervals, Landmarks, target heart rate
Workouts	5 total — manual, intervals, fat burn, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, fat burn, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, constant watts, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, rolling hills, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, rolling hills, target heart rate, Sprint 8
Workouts	5 total — manual, intervals, rolling hills, target heart rate (speed), Sprint 8
Workouts	5 total — manual, intervals, rolling hills, target heart rate (speed), Sprint 8
Workouts	5 total — manual, intervals, rolling hills, target heart rate (speed), Sprint 8
Workouts	5 total — manual, intervals, rolling hills, target heart rate, Sprint 8
Display Feedback	Time elapsed, time remaining, miles / kilometers, current speed, pace, heart rate, calories, incline
Display Feedback	Time elapsed, time remaining, miles / kilometers, current speed, pace, heart rate, calories, incline
Display Feedback	Time elapsed, time remaining, miles / kilometers, current speed, pace, heart rate, calories, incline
Display Feedback	Time elapsed, time remaining, miles / kilometers, current speed, pace, heart rate, calories, incline
Display Feedback	Time elapsed, time remaining, miles / kilometers, current speed, pace, heart rate, calories, incline
Display Feedback	Time elapsed, time remaining, miles / kilometers, current speed, pace, heart rate, calories, incline
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, watts, heart rate, calories, METS, speed, resistance
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, pace, heart rate, calories, METS, incline, resistance
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, watts, heart rate, calories, METS, incline, resistance
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, pace, heart rate, calories, METS, speed, resistance
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, watts, heart rate, calories, METS, speed, resistance
Display Feedback	Time elapsed, time remaining, calories, watts, SPM, stairs, heart rate, METS, resistance level, height
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, pace, heart rate, calories, METS, speed, resistance
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, watts, heart rate, calories, METS, speed, resistance
Display Feedback	Time elapsed, time remaining, miles / kilometers, RPM, pace, heart rate, calories, METS, speed, resistance
Assembled Weight	3.5 kg / 8 lbs.

ViaFit Connectivity Guide · PDF

Download manual

Manufacturer specifications for this model. Optional features, console, power supply and weight stack depend on the ordered configuration.Full technical guide at Eurotec
